Bimma EWD - Wiring Diagrams

Features Bimma EWD - Wiring Diagrams

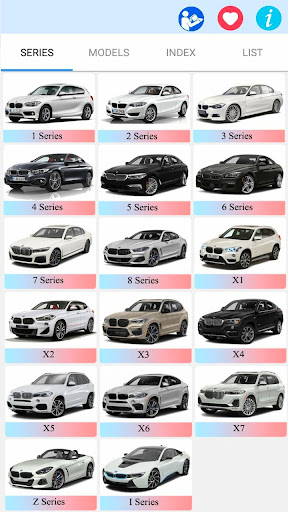

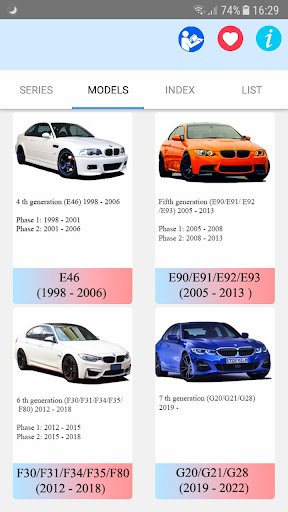

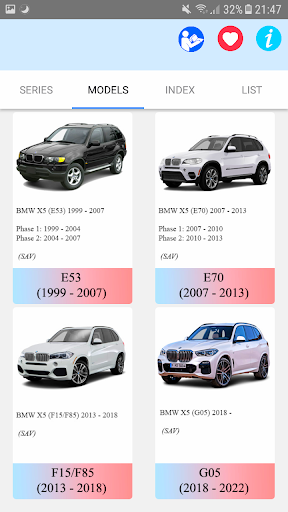

This application contains all the electrical wiring diagrams and the location of electronic components (ECU, Fuse Box..) for BMW cars from 1998 to 2024.Regularly updated for trustful Electrical wiring diagrams and can be used as a reference when you do repairing BMW cars.Currently includes the following models (all models from 1998-2024):1 series : E81, E82, E87, E88, F20, F21, F40, F522 series : F22, F23, F45, F46, F87, G42, U063 series : E46, E90, E91, E92, E93, F30, F31, F34, F35, F80, G20, G21, G28, G804 series : F32, F33, F36, F82, F83, G22, G23, G26 G82 ,G835 series : E39, E60, E61, F10, F11, F07, F18, G30, G31, G38, F906 series : E63, E64, F12, F13, F06, G327 series : E65, E66, E67, E68, F01, F02, F03, F04, G11, G128 series : F91, F92, F93, G14, G15, G16X series : E84, E83, E53, E70, E71, F48, F39, F15, F16, F25, F26, F85, F86, F95, F96, F97 F98, G01, G02, G05, G06, G07, G08Z series : E52, E85, E89, G29I series : I01, I12, I15, I20Application features:- Download function- Print function- Favorites- No ads
